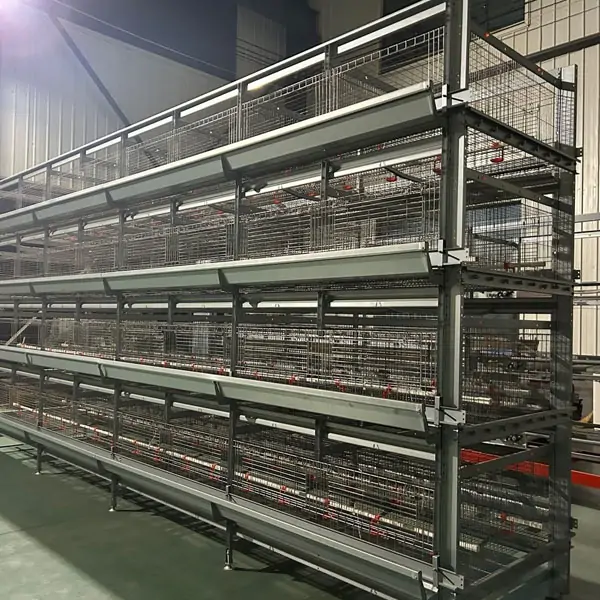

Pull-Out Slat Type Automatic Harvesting Broiler Cage
Pull-Out Slat Type Harvesting Broiler Cage Poultry Farming Equipment
- Applicable Industries: Poultry Farms
- Use: Broiler Chicken
- Material: Hot Dip Galvanized Steel
- Tiers: 3-4 Tiers
- Certification: ISO 9001,SONCAP
- Life Time: 15-20 Years
- Save time: Bird-harvesting>6000 birds/hr
- Save Feed: Feed-to-meat Ratio 1.4:1
- Long Lifespan: 15-20 years
There are two main types of automatic broiler cage systems: the pull-out slat type and the new chain-type harvesting system. Both systems are equipped with fully automatic feeding, manure removal, and broiler collection functions, enabling highly efficient and labor-saving operation.

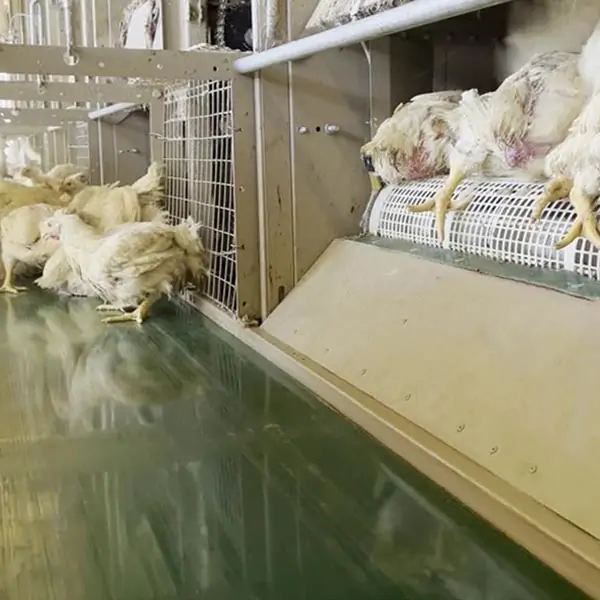

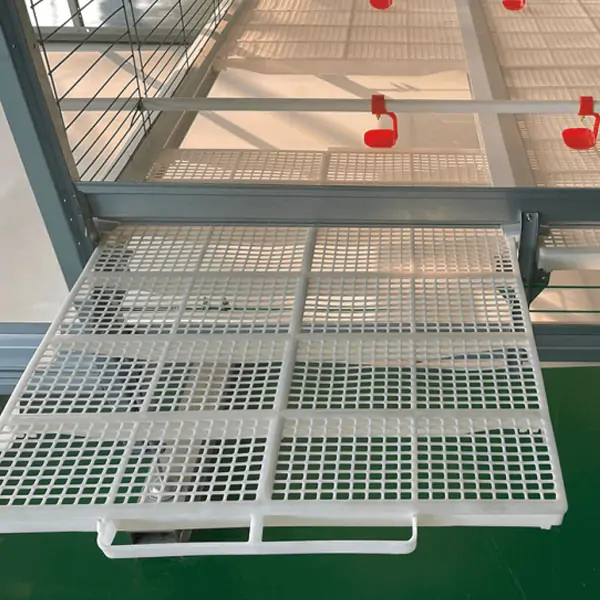

For the pull-out slat type automatic harvesting broiler cage system, a removable tray inside each cage is smoothly pulled out during harvesting. This allows the broilers to gently drop onto the manure belt below. The belt then conveys the chickens to the end of the cage row, where a horizontal chicken collector lifts them out of the poultry house and transfers them onto a rotary collection table. From there, workers can easily gather the broilers in a centralized area, eliminating the need to handle birds individually inside each cage.
This harvesting method greatly reduces bird stress and injury while dramatically improving collection speed and labor efficiency.
Because broiler chickens have a short growing and slaughter cycle, cage equipment must be washed and disinfected many times each year. To ensure long-term durability under these harsh conditions, the steel plates are treated with epoxy electrostatic powder coating. This advanced surface treatment provides excellent corrosion resistance, protects against moisture and chemicals, and significantly extends the service life of the cage system, reducing maintenance costs and long-term investment for poultry farms.

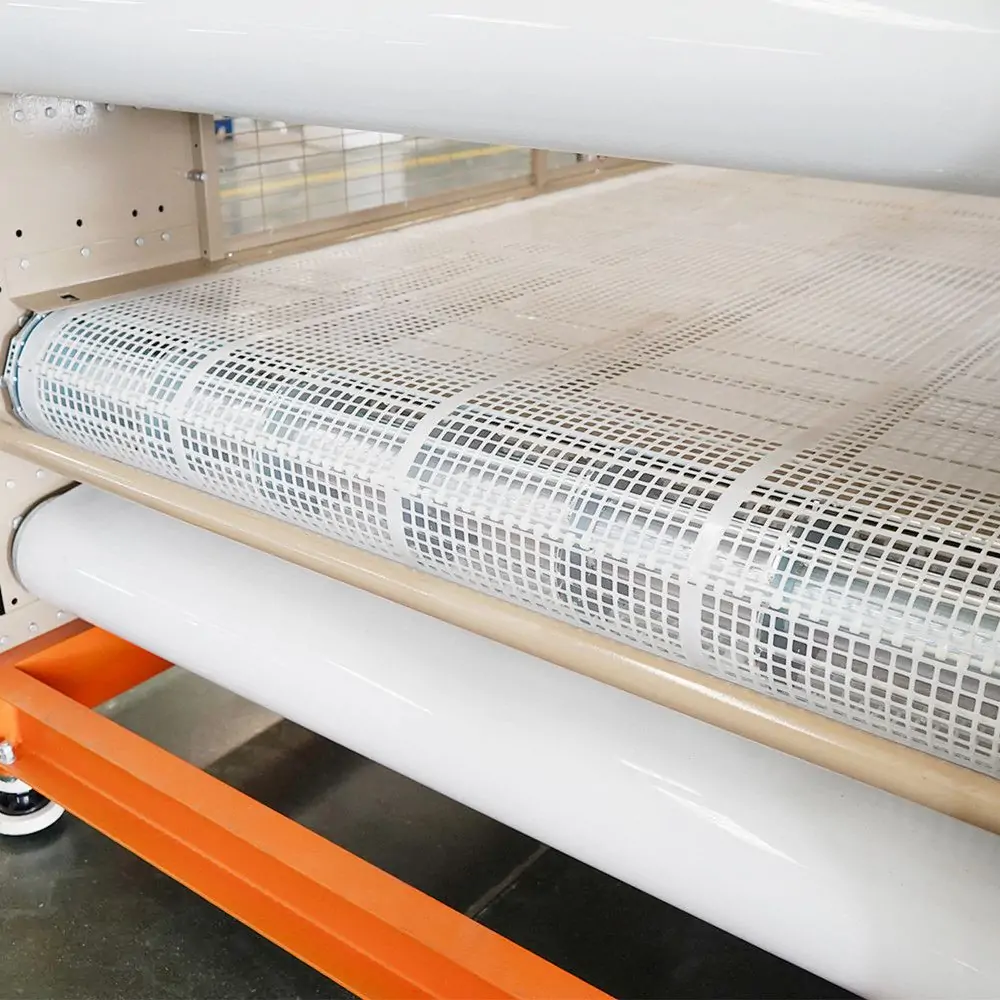

Compare

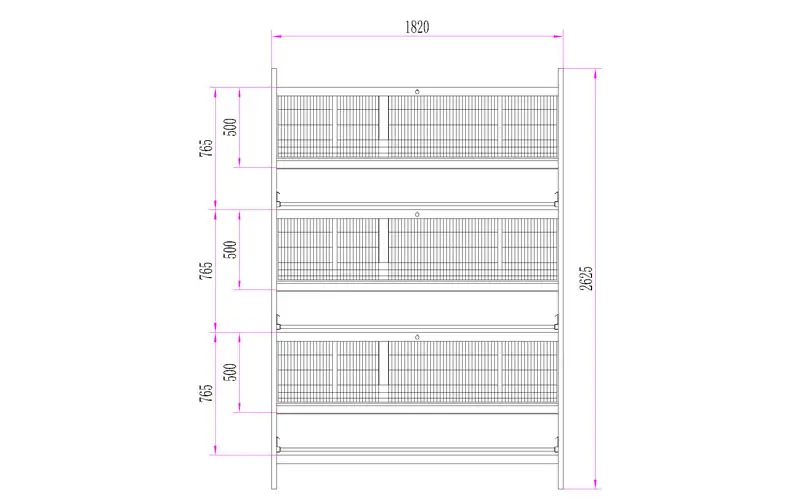

Automatic Harvesting Broiler Cage Drawing
Cage size
| Building size recommend | |||||||||
| Recommend building size | Chicken Quantity | ||||||||
| 90m*17.3m*4.5m (4-tier cage) | 81000(1.8kg bird) | ||||||||
| 80m*14.5m*4.2m (3-tier cage) | 41400(1.8kg bird) | ||||||||
| Cage information | |||||||||
| Cell Size | Length 3000mm, | ||||||||
| Raising Area | 364cm² | ||||||||
| Broiler Quantity per Cell | 150 birds/cell(<1.8kg) | ||||||||

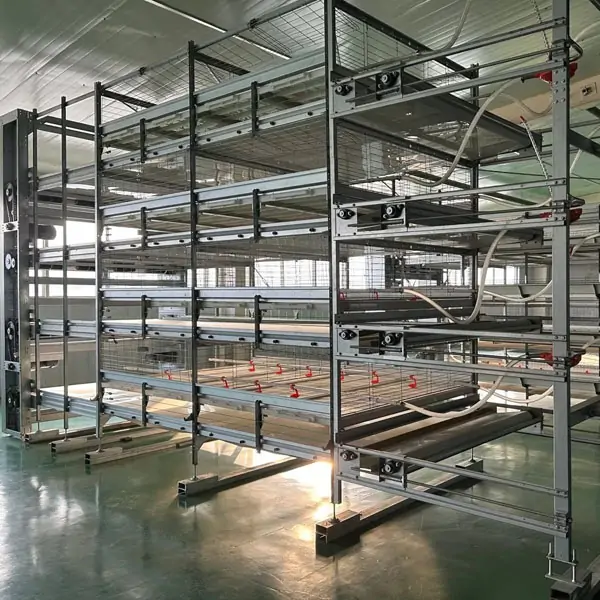

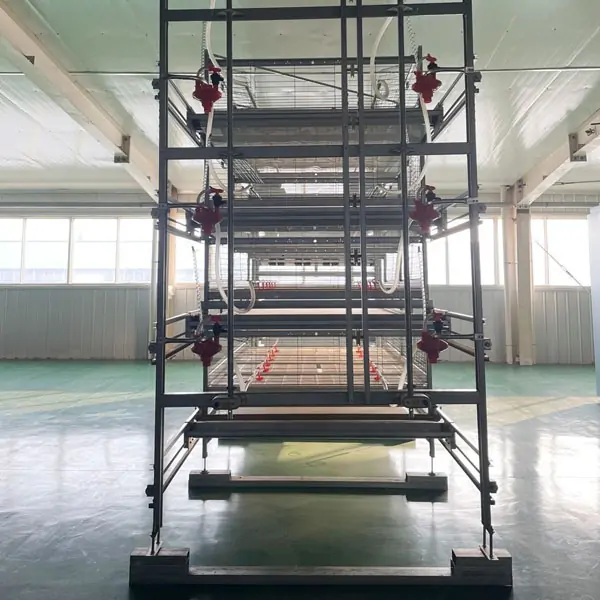

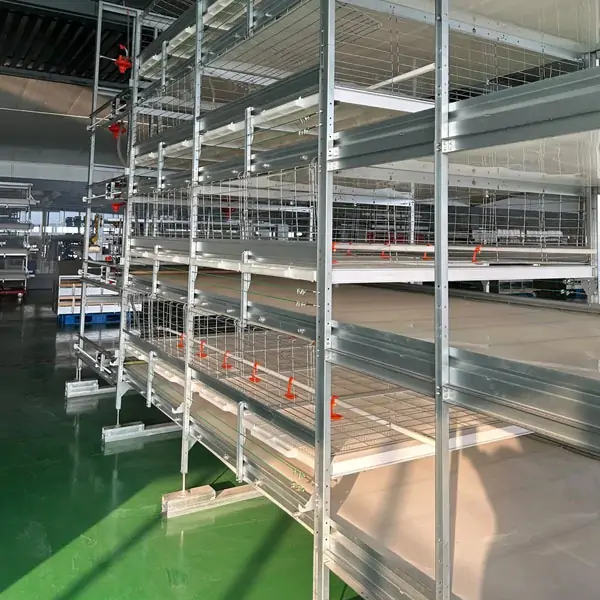

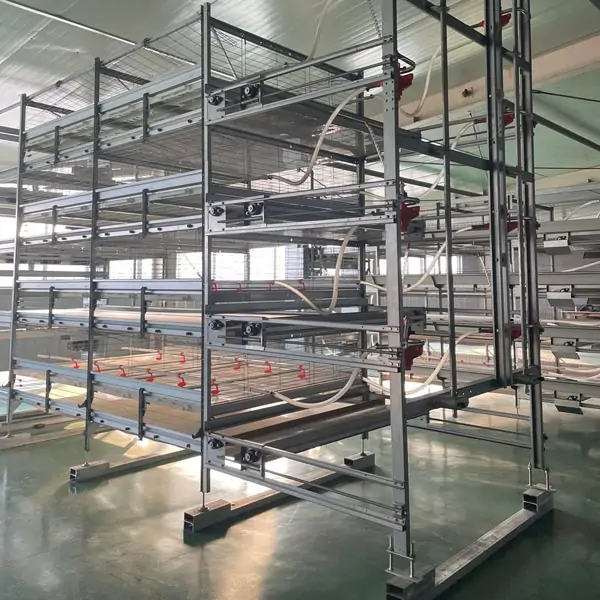

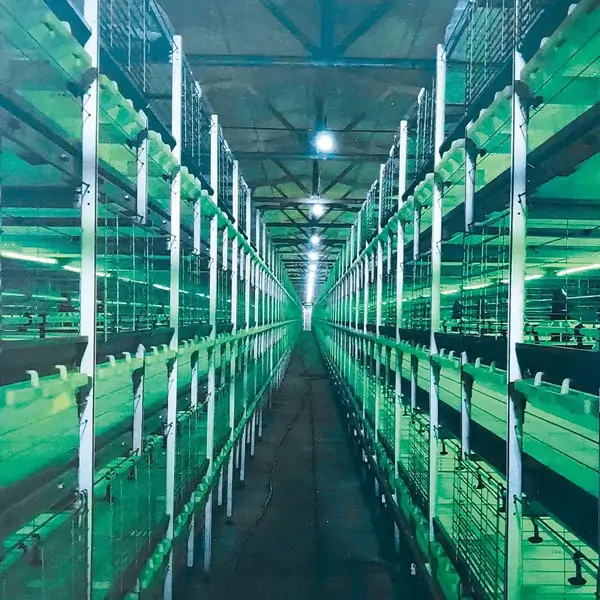

Cage mesh + frame
- Cage size: perfectly fitted to match the number of birds (raising density:50kg/㎡).
- Surface treatment: hot galvanized with uniform 275g zinc coating, good anti-corrosion quality.

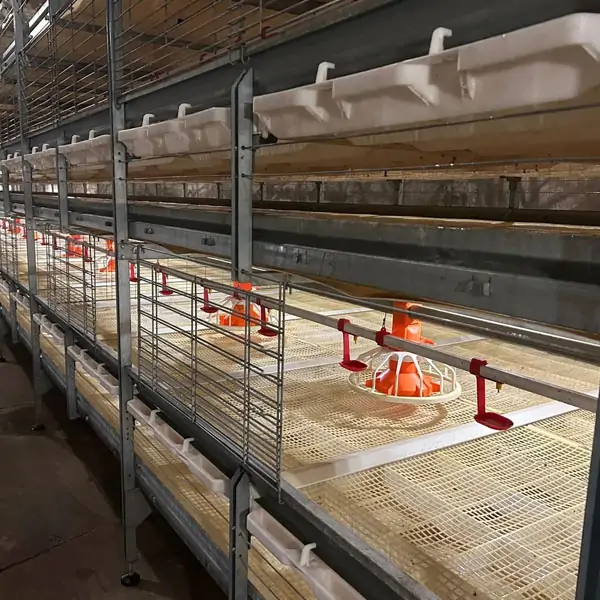

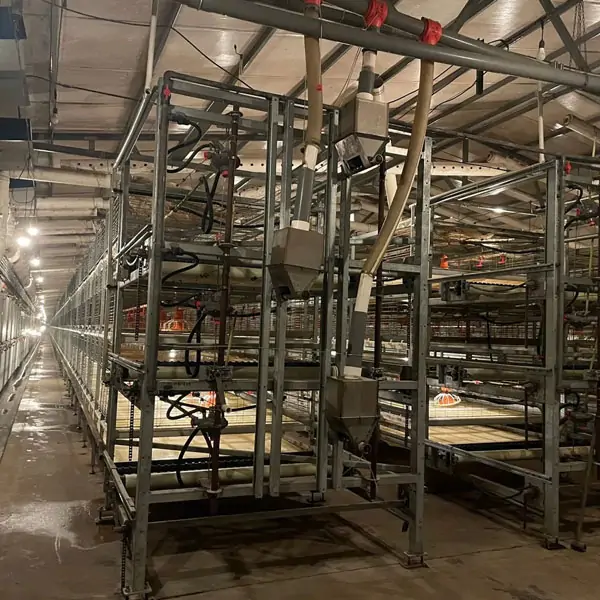

Automatic feeding

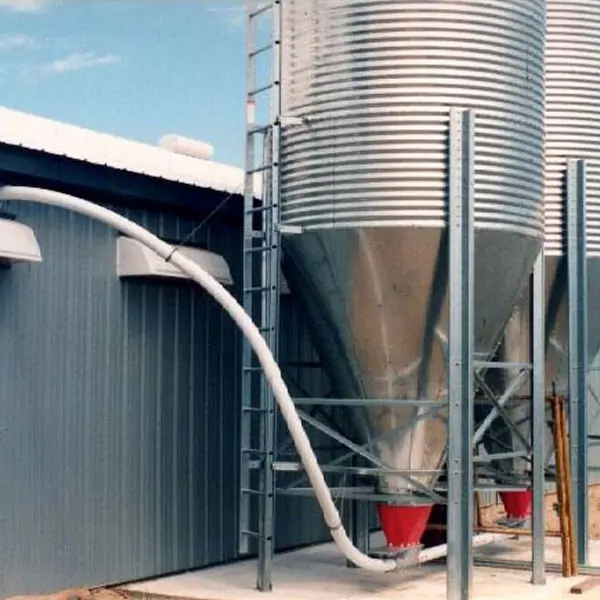

- Silo: weighing device is included for daily records of feed consumption.
- Pan feeding: The height is adjustable to feed chickens at different ages.
- Feed sensor: IFM®.
- Feed pipe: hot galvanized.
- Spiral: imported from South Africa.
- This mechanism guarantees a uniform distribution of feed over the whole system.

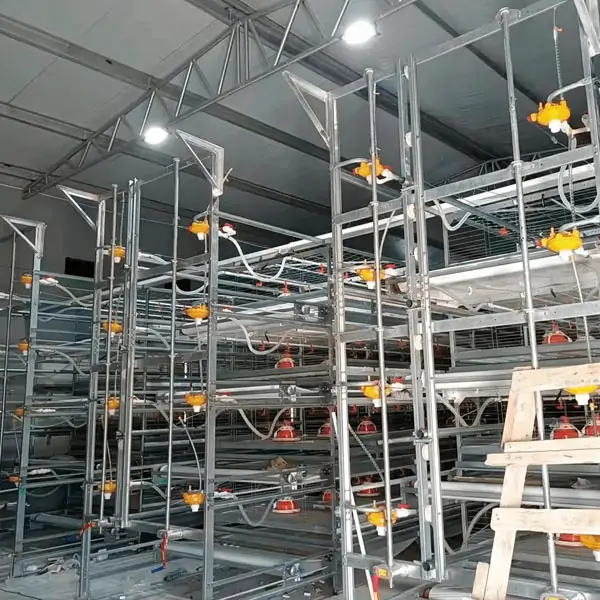

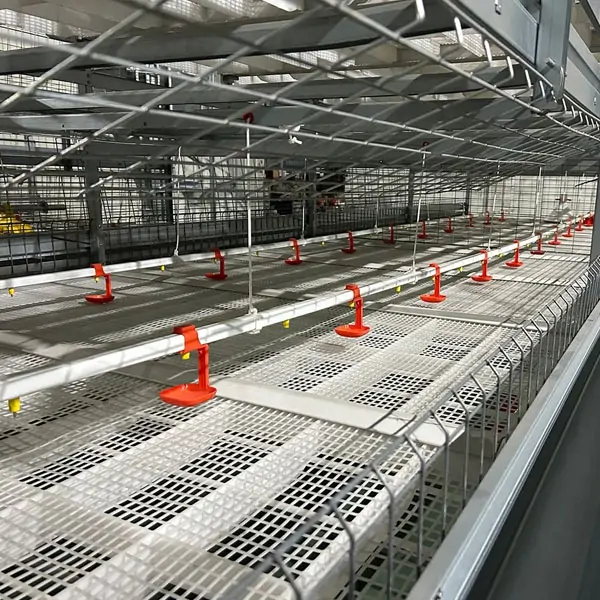

Automatic drinking
- Lifting system for every water dispenser allows chickens to drink at the correct height.
- Two different water supply lines are placed in each cage with 12 pcs drinkers.
- 360°water supply of the nipples.
- Supply Doser, filter, and pressure gauge.

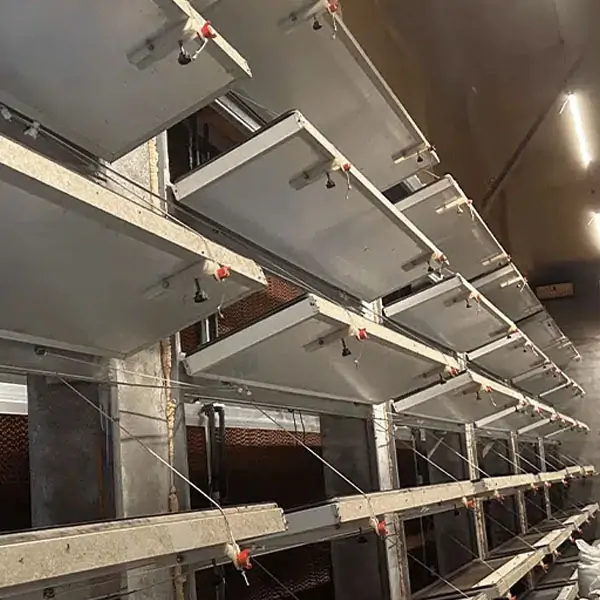

Automatic manure cleaning

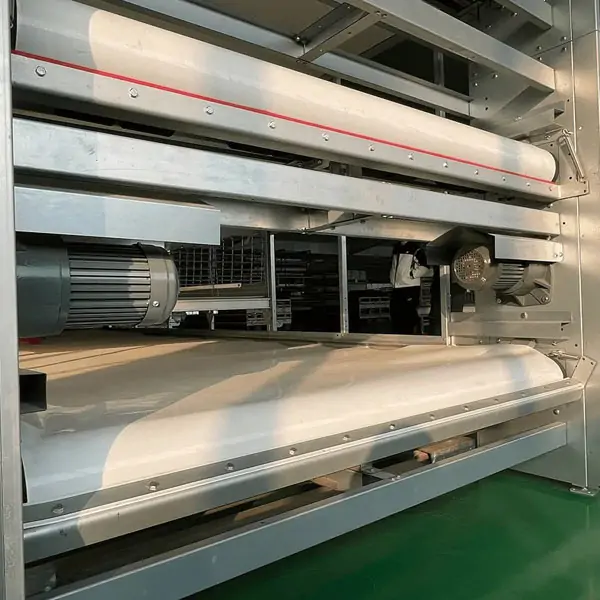

- PP belt, 1.2mm thickness.
- Conveying speed: 3m/min.

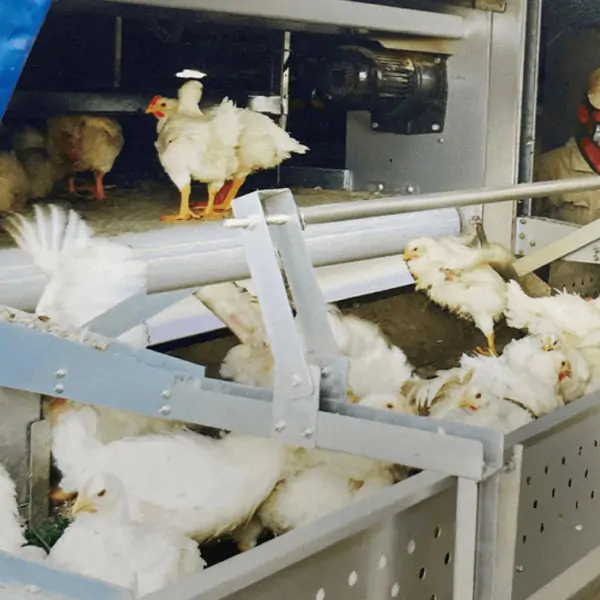

Automatic bird-harvesting

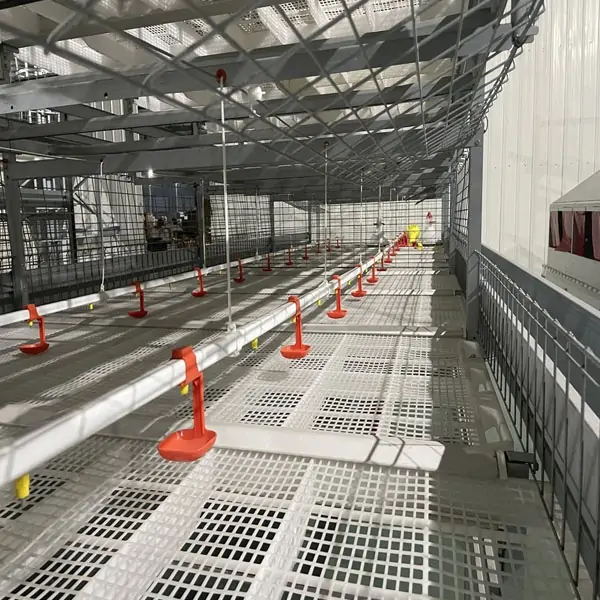

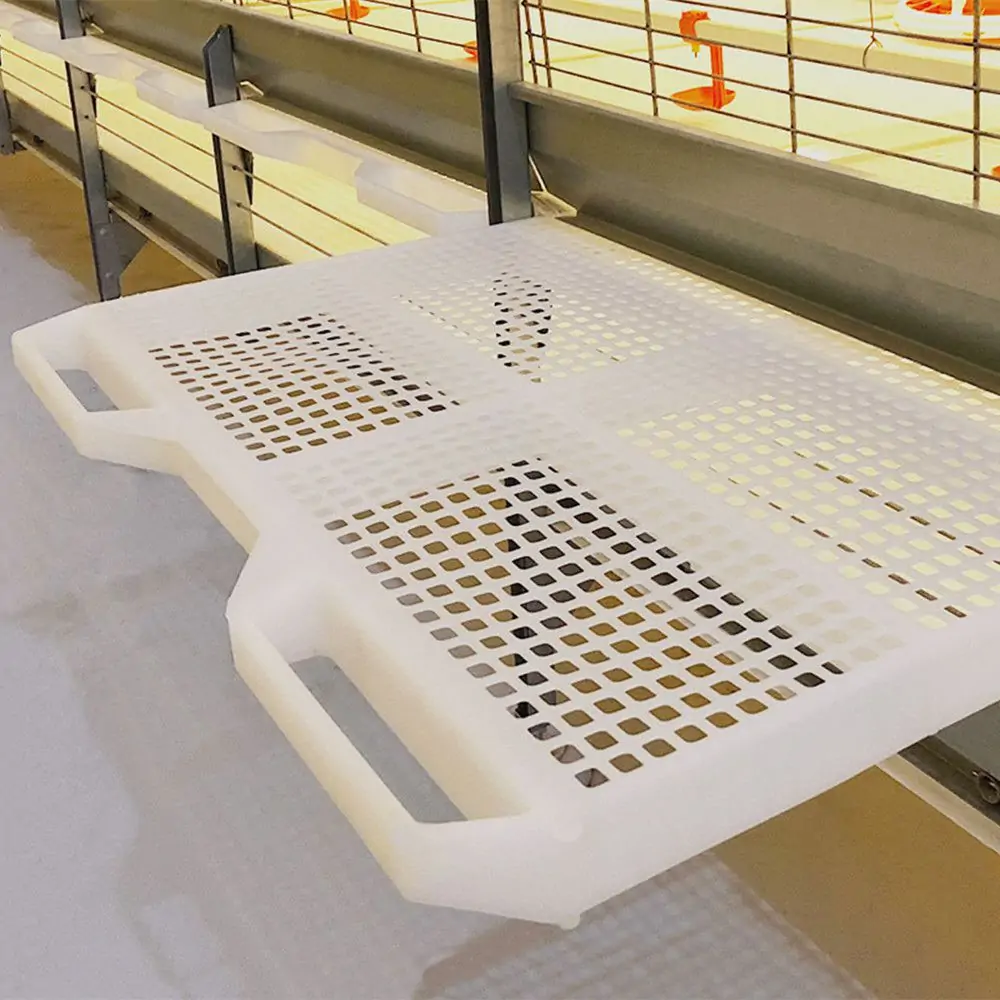

- Plastic slat floor: PP raw material, soft and strong, hurt chicken breasts and feet; Easily pulled out.
- Flexible bird-harvesting time: Qualified chickens are taken out first. Chickens below the slaughter weight can continue to be raised for 1-2 days.

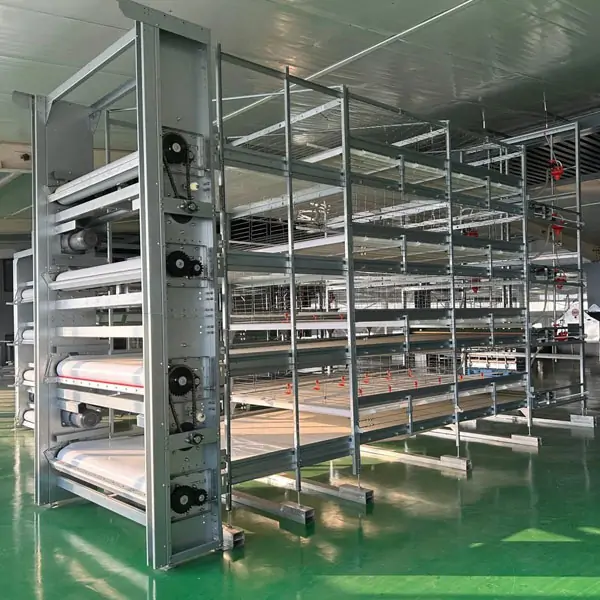

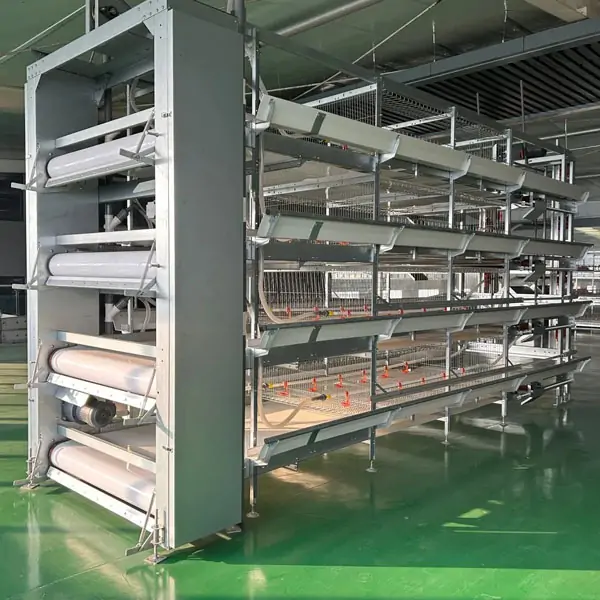

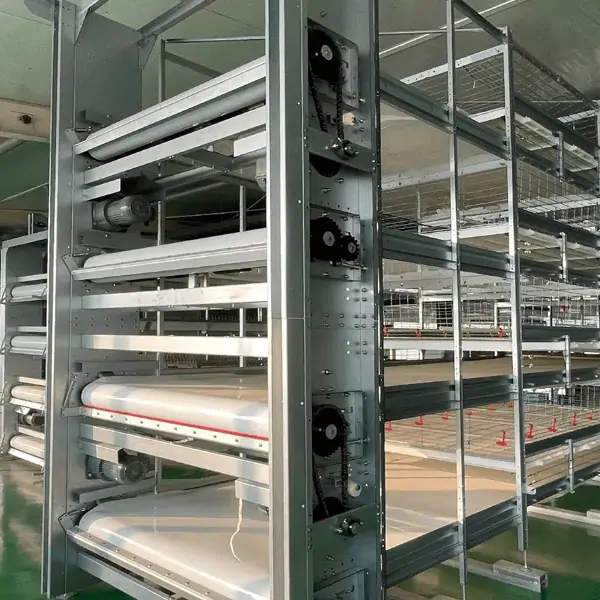

- lifting system at the final part can transport chickens from each tier outside the house.
- Bird-harvesting speed: about 6000 birds per hour.
- PVC conveying belt with 600mm width.
Automatic ventilation

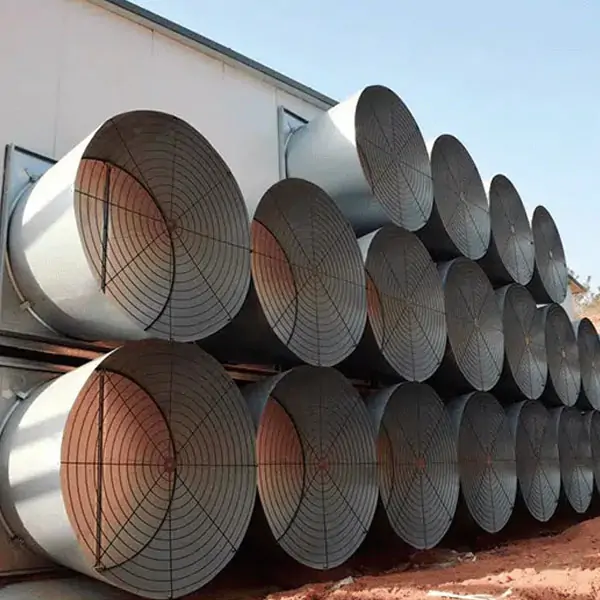

- Cone fan: pass dynamic balance test.

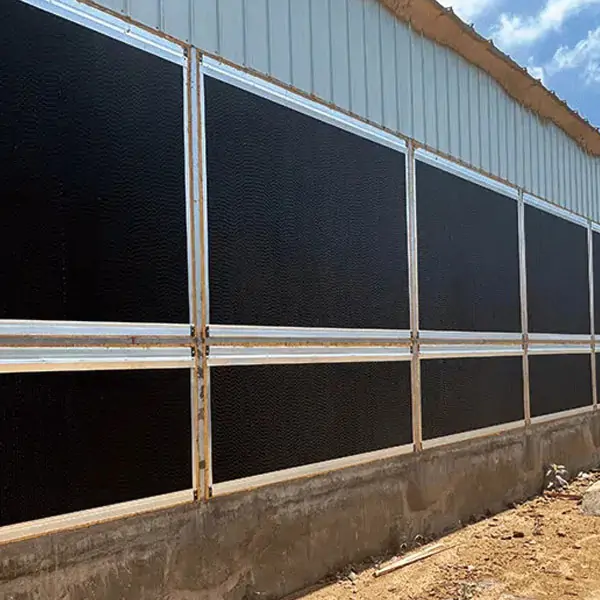

- Cooling pad: with anti-rat mesh.

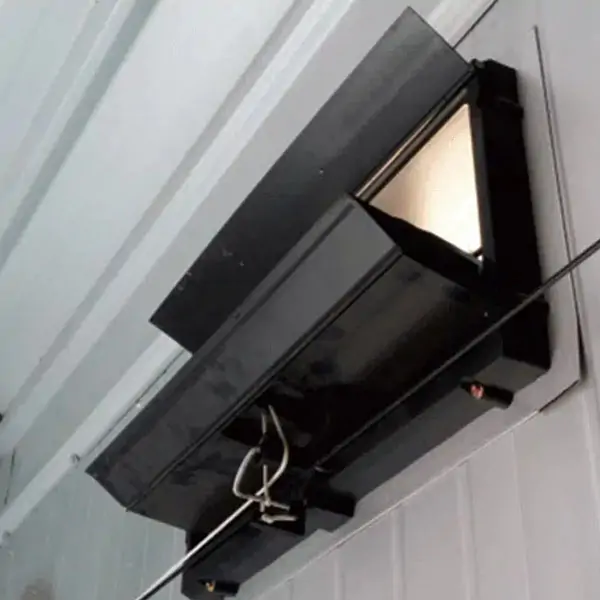

- Air-inlet window: with anti-bird mesh.
- Deflector: prevent cold air on chickens directly, avoid cold stress.

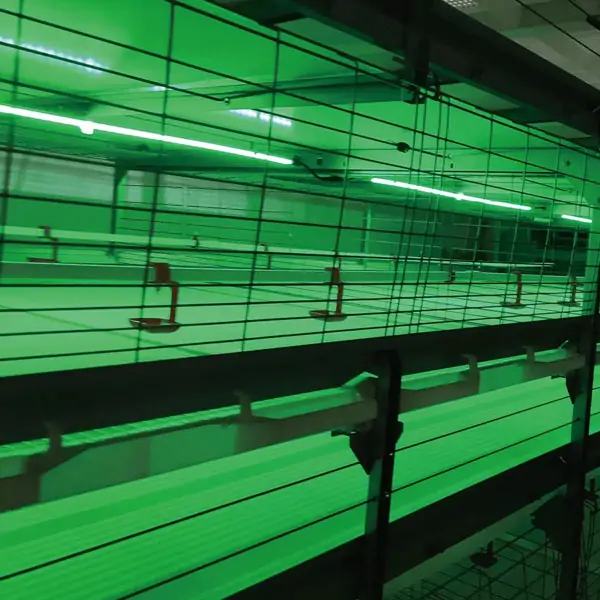

Automatic lighting
- Lights are specially for broiler chickens
- Uniform lighting, no flicker
Why Choose Sheedoz
The durability of Sheedoz equipment is built on the use of thick, high-quality raw materials, meticulous attention to detail, and the reinforcement of critical structural components. Every part is manufactured under strict quality standards and subjected to continuous monitoring through our comprehensive quality assurance system, ensuring long-term reliability and stable performance.
Sheedoz places strong emphasis on the research and development of automation and intelligent technologies. We hold multiple structural patents, all of which have been rigorously tested and validated on modern poultry farms. This commitment to innovation enables us to deliver integrated, future-ready solutions that meet the evolving needs of our customers.
With successful projects implemented in 51 countries worldwide, Sheedoz equipment has consistently demonstrated optimal performance across a wide range of climatic and farming conditions. This global track record proves our ability to provide reliable, efficient, and adaptable poultry solutions—wherever your farm is located.
Our design experts provide customized farm layouts and poultry house designs tailored to your specific requirements, land conditions, and local climate. These detailed designs help you clearly present your project plans to partners and effectively guide workers during on-site construction.
With business operations spanning markets worldwide, Sheedoz brings extensive hands-on experience across multiple segments of the poultry equipment industry. This global expertise allows us to develop scientific, practical farm designs that optimize space utilization, productivity, and long-term operational efficiency.
In addition to equipment supply, we also offer professional training and technical guidance, ensuring that customers can operate and manage their poultry systems efficiently and confidently from installation to daily production.
Sheedoz cooperates with multiple modern breeding farms, and has accumulated valuable poultryexperiences of layer, broiler, pullet and breeder. We firmly believe that a comfortable and safe raisingenvironment is also very important. Sheedoz's solutions meets your highest requirements regarding birdhealth, production performance and environmental factors. Therefore Sheedoz not only stands for high-endquality, but also the optimal production perfommance.
Sheedoz is supported by an expert team with over 20 years of hands-on poultry farming experience. Our team includes senior consultants, experienced engineers, environmental control specialists, and poultry health protection experts, ensuring comprehensive technical support at every stage of your project.
We work closely with customers throughout the entire project lifecycle—from initial consultation and farm design to equipment production, installation, and on-site rearing guidance—helping ensure stable operation and long-term success.
Powered by advanced digital technologies, the Sheedoz “Smart Farm” cloud platform and intelligent environmental control system integrate IoT technology and cloud computing to deliver real-time monitoring, data analysis, and automated control. This enables customers to achieve fully digital, intelligent, and efficient poultry farming, driving higher productivity and smarter farm management.
