Poultry Slatted Floor System
Poultry Slatted Floor System for Chicken House

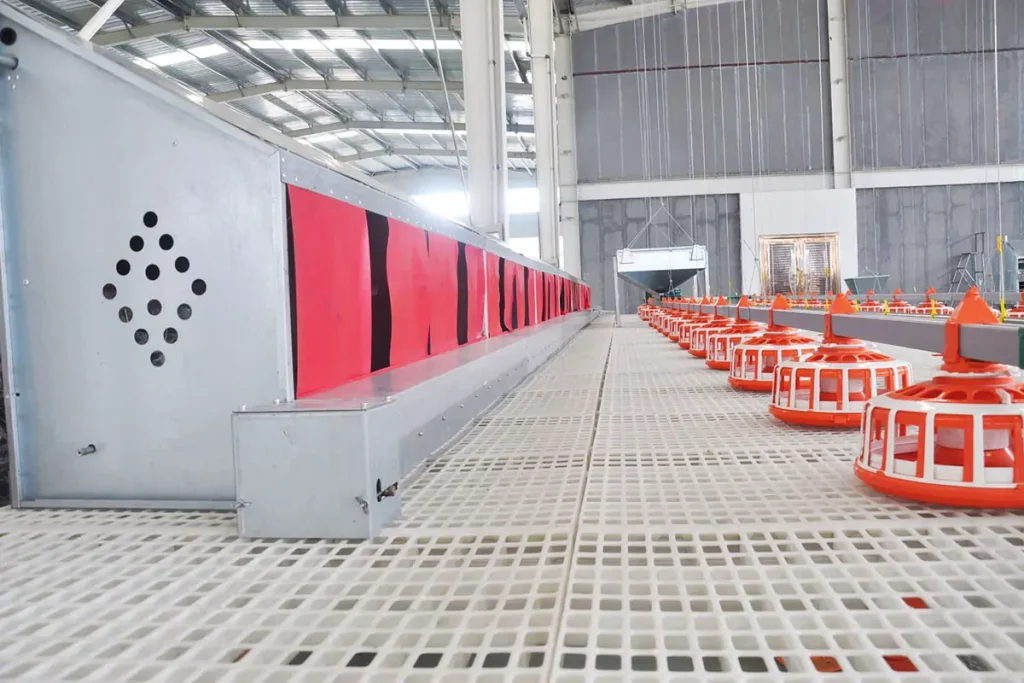

Sheedoz plastic slatted floor system is made of high-strength, wear-resistant polypropylene, the poultry plastic flooring is designed for cage free chicken farm to replace wood floors in poultry house. Plastic poultry flooring system can separate poultry and manure, thereby inhibiting bacterial reproduction and growth. In addition, it has a longer service life than wood, is moisture-proof and easier to clean, and can reduce poultry foot pads and leg problems.
In some countries, due to the legal protection of animal welfare, the use of battery cage system is banned. Therefore, the plastic slatted floor system is a compromise cage free solution, which allows poultry to move freely in the poultry house without being restricted by cages.

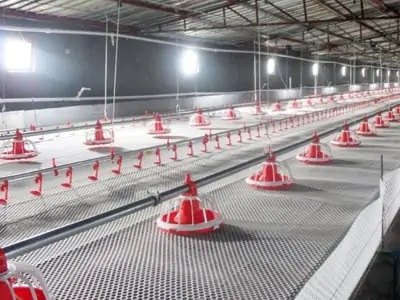

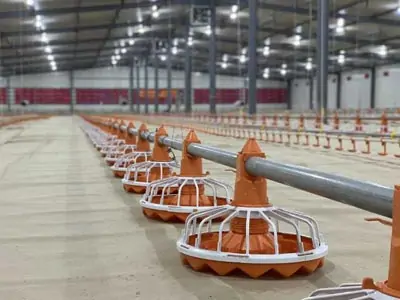

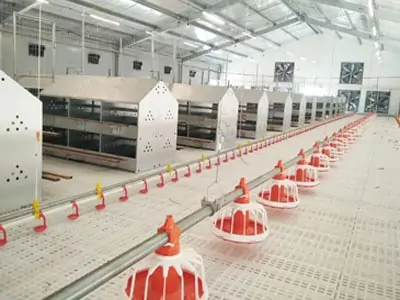

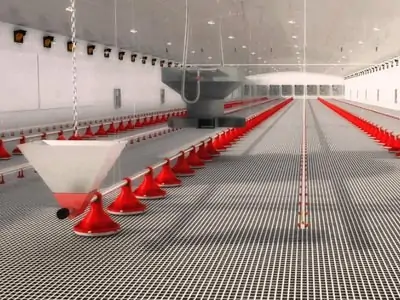

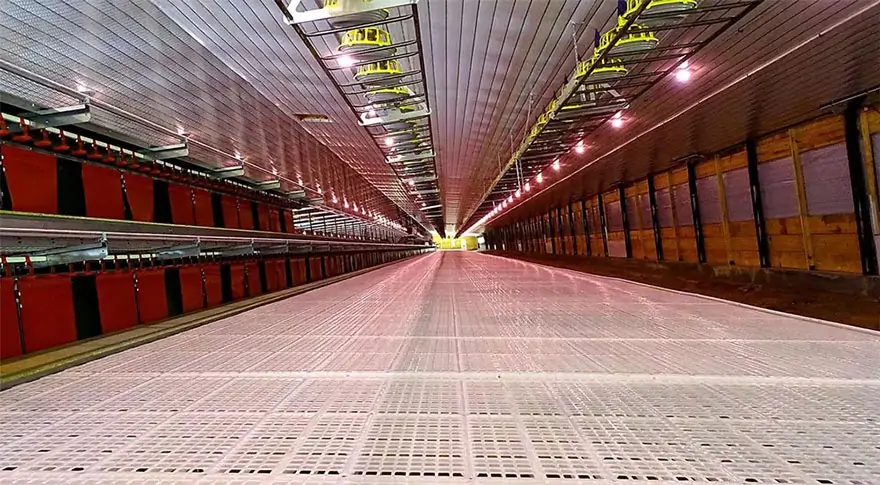

Different types of Poultry Slatted Floor System

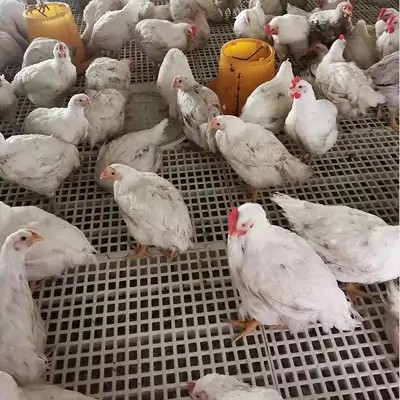

Slatted floor system in poultry mainly refers to the method of keeping chickens off the ground and raising them on meshes made of plastic. In order to facilitate management and the cleaning of chicken manure, there will be a certain distance between the slat floor and the ground.
Advantages of Sheedoz’s Slat Floor
1. In Line with Global Trends
With the European Union set to fully ban caged animals by 2027, cage-free systems—especially plastic slatted flooring—are becoming the mainstream choice worldwide. This system offers strong market prospects and long-term development potential.
2. Improved Hygiene & Disease Control
Chicken manure falls directly below the slatted floor, preventing birds from contacting waste.
This greatly reduces disease transmission and helps control common poultry diseases such as coccidiosis, colibacillosis, chronic respiratory disease, fowl cholera, and ascites.
Cleaner floors also help avoid egg contamination, improving overall product quality.
3. Higher Stocking Density
On average, 1 square meter can accommodate 4.8 chickens, supporting efficient space utilization while maintaining good welfare conditions.
4. Cost-Effective & Waste Recyclable
Compared with traditional cages:
The overall cost is lower.
Chicken manure can be collected and recycled, increasing income and reducing waste treatment costs.
5. Enhanced Bird Welfare & Performance
The plastic slatted floors have a smooth, burr-free surface, providing excellent support for poultry feet and reducing leg and foot diseases.
Birds enjoy more freedom of movement, which contributes to better laying performance and lower stress levels.
6. Easier Management
Since most daily operations—feeding, inspection, egg collection—are performed in the corridor, labor intensity is reduced, and stress to chickens is minimized.
Temperature and humidity control, as well as ventilation, are easier to manage, helping further increase stocking density.
7. Fast Installation & Flexible Adjustability
The flooring system is easy to install and maintain.
Adjustable supporting legs ensure a perfectly level floor even on uneven ground.
Leg height range: 400–500 mm (can be customized).
8. Durable & Reliable Materials

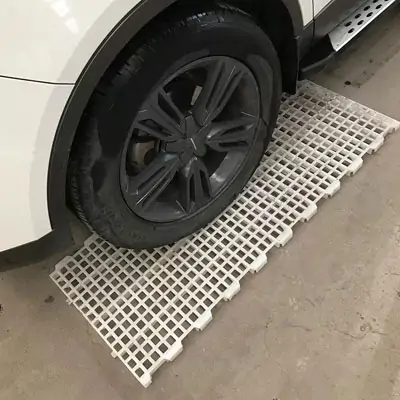

The slatted floor is made of high-impact polypropylene, featuring strong impact resistance and excellent abrasion resistance.
Reinforced, anti-aging PVC beams are rust-proof, corrosion-resistant, and built for long service life.
9. Wide Application Range
Available in multiple sizes and configurations suitable for:
Laying hens
Broilers
Chicks
Ducks
Geese
And other poultry species

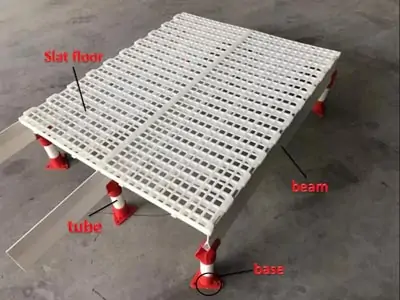

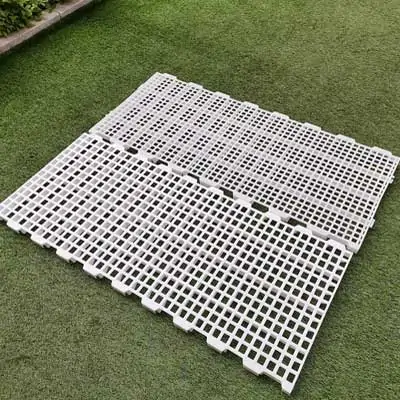

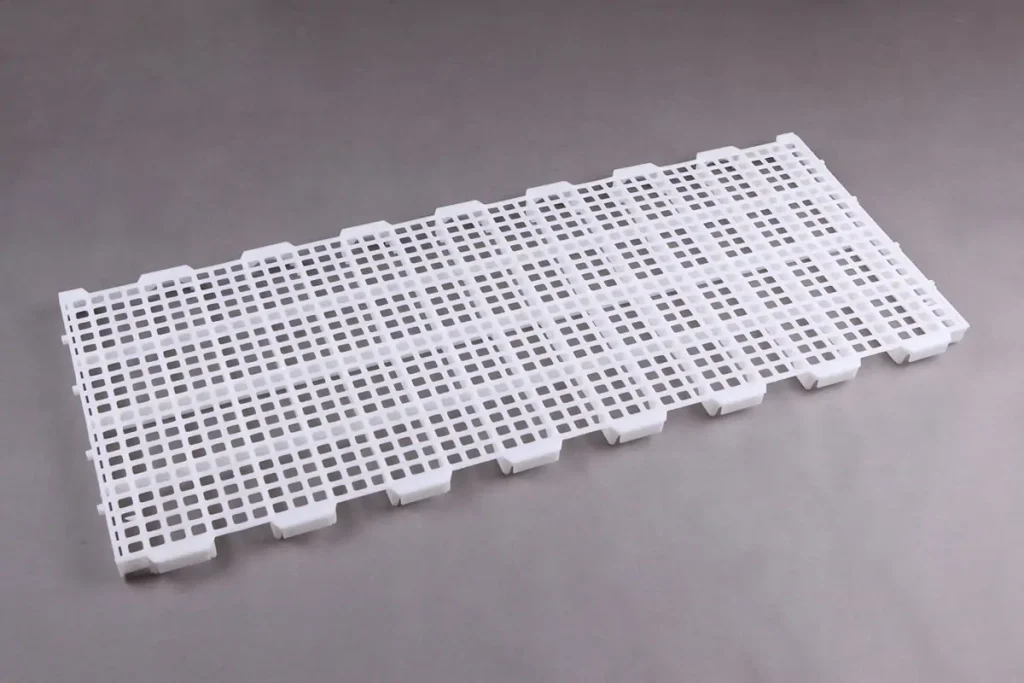

Parameters of Sheedoz’s slatted floor
| Slat foor | ||||
Type | Unit | Size/mm | Mesh/mm | Weight/kg |
1 | pcs | 1200*500*40 | 16*16 (for baby chicken) | 2.0 |
2 | pcs | 1200*500*40 | 20*20 | 2.0 |
3 | pcs | 1200*500*40 | 20*24 | 2.3 |
4 | pcs | 1200*500*40 | 18*40 | 1.65 |
Base | Made of PVC, the height is adjustable from 280mm to 500mm |
Beam | Height(material): 9cm(PVC)/12cm(PVC)/15cm(FRP); |
Length: 3/4 m | |
Tube | Diameter: 5cm, made of PVC |
Improved Hygiene and Disease Control
One of the primary advantages of using a slatted floor system is its contribution to improved hygiene and disease control. The design of the slats allows droppings to pass through, preventing direct contact between the birds and their waste. This reduces the risk of bacterial and parasitic infections, resulting in healthier birds.
Better Manure Management
Slatted floors facilitate efficient manure management. The droppings that fall through the slats can be collected in a pit or a manure removal system. This makes it easier to remove and dispose of the waste, reducing the risk of bacterial contamination in the poultry house. Proper manure management also prevents ammonia build-up, creating a healthier environment for the birds.
Enhanced Air Quality
By allowing droppings to fall through the slats, the slatted floor system in poultry helps maintain better air quality within the poultry house. The reduced contact between the birds and their waste minimizes ammonia emissions, which can have detrimental effects on respiratory health. Improved air quality translates to healthier birds and improved overall productivity.
Reduced Footpad Lesions
Conventional flooring systems, such as solid concrete, can lead to footpad lesions in poultry due to prolonged exposure to wet litter. Slatted floors, on the other hand, allow droppings to pass through, keeping the surface drier and reducing the risk of footpad problems. This leads to better foot health and improved welfare for the birds.

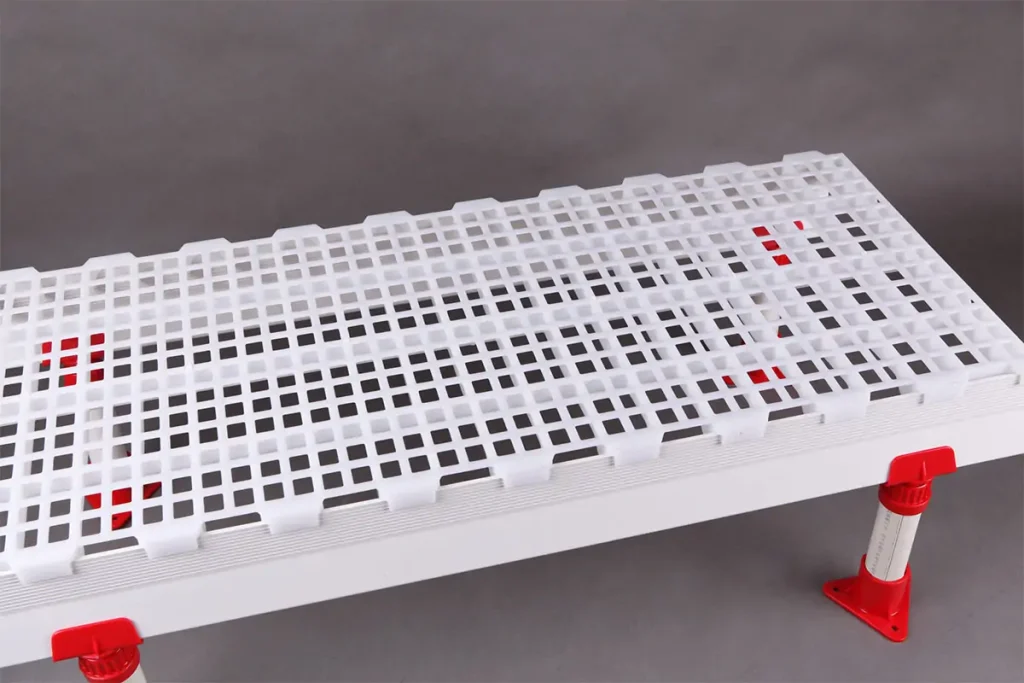

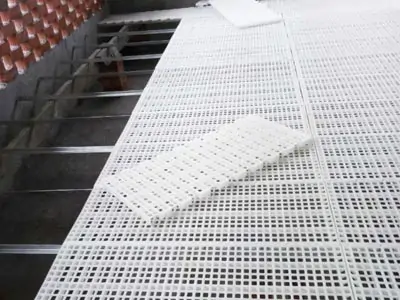

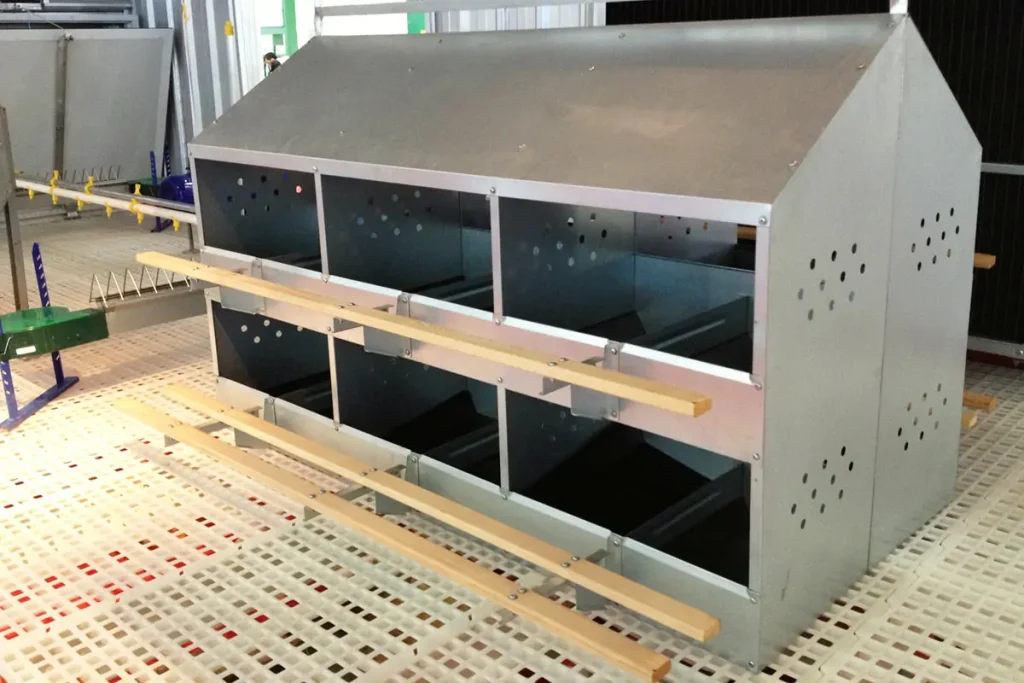

Details of Plastic Slatted Floor

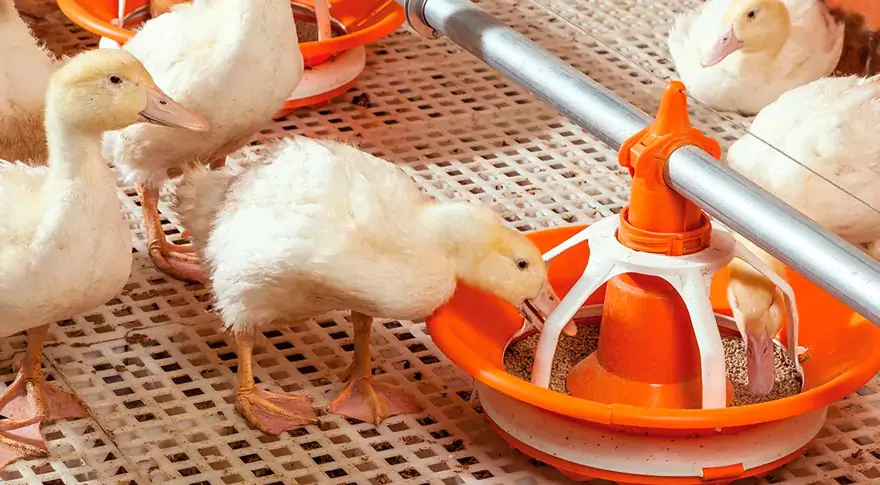

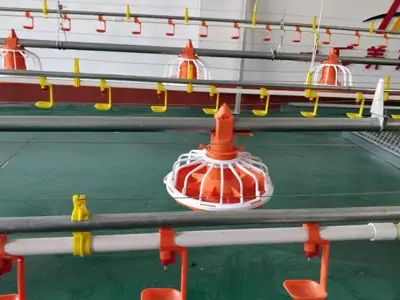

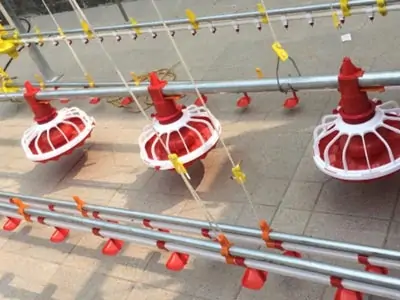

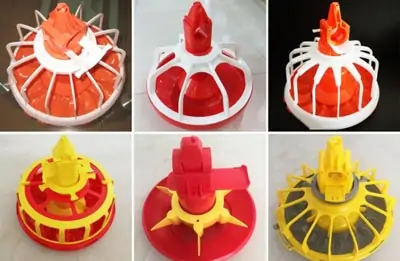

Chicken feed pan
●SPECIFICATIONS
Material: 100% brand-new PP
Service life: 10-12 years
Weight: 676±g
Diameter: 330mm for pan of 14 grilles; 360mm for pan of 16 grilles
Separation distance: 3 pans/3 meters; 4 pans/ 3 meters
Feeding quantity: 40-50 birds/pan
●AGVANTAGES
- V-shape chicken feed pan can effectively avoid wastage of feed;
- Superior virgin PVC material prolongs its life to 10+ years;
- The chicken feed pan is disassembly. After disassembled, the plate is suitable for baby chicken of 0-7 days old.
Automatic poultry feed line
●SPECIFICATIONS
Motor: Taiwan brand, IP55 protection class, 0.75kw/1.1kw of power
Sensor: Germany imported/domestic, installed in the feed pan or the bottom of the hopper
Anger: 36mm of diameter, South Africa imported, high-carbon manganese steel
Delivery pipe: 3/4 holes per 3m, 45mm of diameter, 275g/㎡ galvanized sheet; 1.2mm of thickness
Feed Hopper
Material: hot galvanized sheet
Size: 600*600/800*800 mm
Thickness: 1.00 mm
Capacity: 120L
Advantages: 1. The funnel-shaped feed hopper makes sure the feed enters the feed delivery pipe smoothly;
2. The hot galvanized sheet material is anti-corrosion and durable
Poultry drinking system
●SPECIFICATIONS

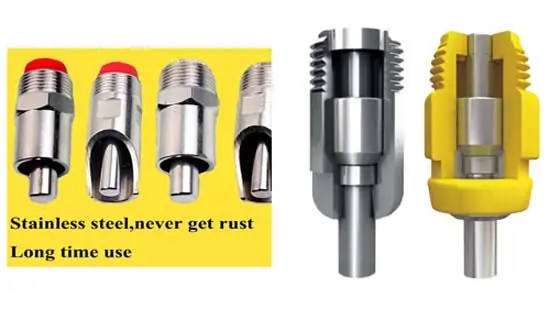

Nipple drinker: made of stainless ball and PVC shell, 12/15 drinkers per meter
Medicine doser: DOSATRON from France
Water Pipe: round(better quality)/square(easy cleaning); max length is 150m
Water Purifier: provides clean water for 50,000 birds
Drinking line: distance between 2 drinking lines is 2.5-3m
Water regulator: made of PVC
●AGVANTAGES
- Effectively prevent the contact between water and chicken manure and avoid ammonia emission;
- Superior material of nipple drinker not only ensures smooth drinking of chicken but also guarantees a long service life;
- The health of chicken is ensured by imported medicine doser can water regulator which can also take the quickest response to the emergence of small or large scale disease.
Poultry ventilation system
●SPECIFICATIONS
Blade: imported from Germany, made of galvanized sheet and equipped with 3C certified motor with IP54 protection class, can open automatically
Air inlet window: 600*320*160mm in size; can be open automatically or manually; made of high-quality plastic and stainless steel
Cooling pad: natural water absorption is 60~70mm/5min and 200mm/hour; the size is customizable
●AGVANTAGES
- Ventilation system is an indispensable part of large-scale slatted floor system in poultry,
- The ventilation system can effectively clean the air and reduce the temperature in chicken house to maintain chicken’s health;
- The materials are non-toxic, harmless,green, safe, energy-saving, environmental protection, economical and applicable.
Design considerations for slatted floor system in poultry
Qualification Certificate
FAQs
Yes, the slatted floor system is suitable for various types of poultry, including broilers, layers, and breeders. However, specific design considerations may vary depending on the bird’s size, age, and breed.
Regular cleaning of the slatted floor is necessary to maintain hygiene and prevent waste buildup. The frequency of cleaning depends on factors such as flock size, ventilation, and waste management system. As a general guideline, daily or weekly cleaning is recommended.
Yes, the slatted floor system can be utilized in free-range or organic poultry production. However, it’s important to comply with the relevant regulations and standards to ensure the welfare and organic certification requirements are met.
Proper design and maintenance of the slatted floor system minimize the risk of bird injuries. Attention should be given to slit size, orientation, and material selection to prevent birds from getting stuck or experiencing footpad problems.
For more detailed guidance on implementing a slatted floor system in your poultry house, consult reputable poultry management resources, seek advice from experienced farmers, or reach out to agricultural extension services in your region.
