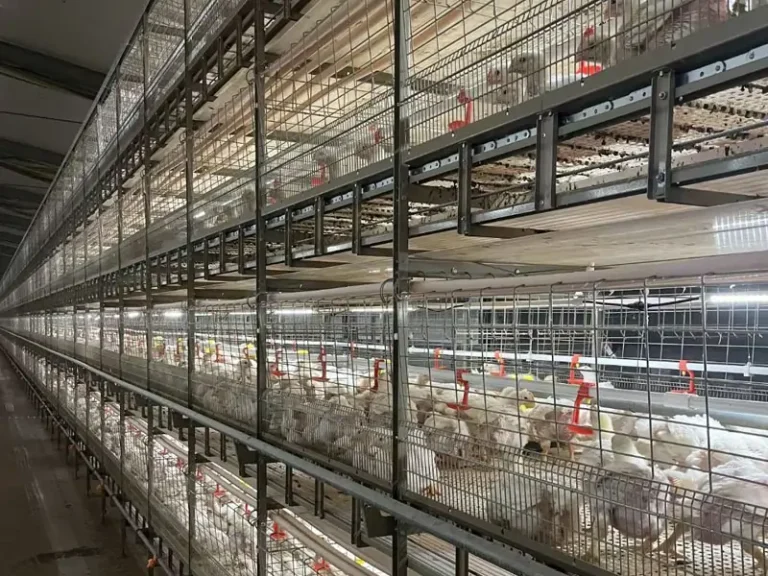

Chain Type Harvesting Broiler Cage
Chain Type Harvesting Broiler Cage Poultry Farming Equipment
- Cage mesh: Q235 carbon wire mesh
- Material: 275gsm zinc coating
- Tiers:2-4 Tiers
- Certification: ISO 9001, PVOC, SONCAP
- Lifetime: 15-20 Years
- Manure cleaning belt: 1.2mm PP belt
- Fully automatic harvesting
The automatic broiler cage system is available in two advanced configurations: the Pull-Out Slat Type Broiler Cage and the New Chain Type Harvesting Broiler Cage. Both systems integrate automatic feeding, manure removal, and broiler collection functions, delivering high efficiency and reduced labor input for modern poultry farms.

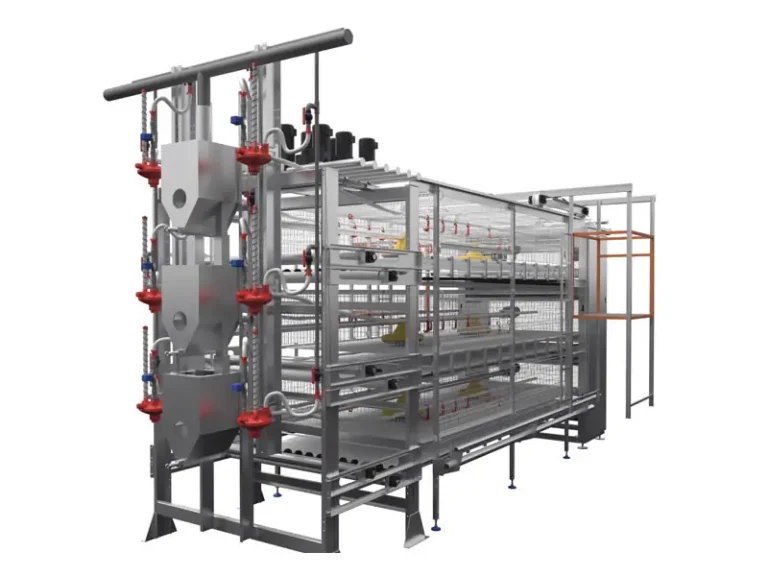

The New Chain Type Harvesting Broiler Cage, also referred to as the automatic harvesting broiler cage, represents the highest level of automation in broiler production. In addition to fully automated rearing, it enables fully automated broiler harvesting, greatly simplifying the most labor-intensive stage of production.

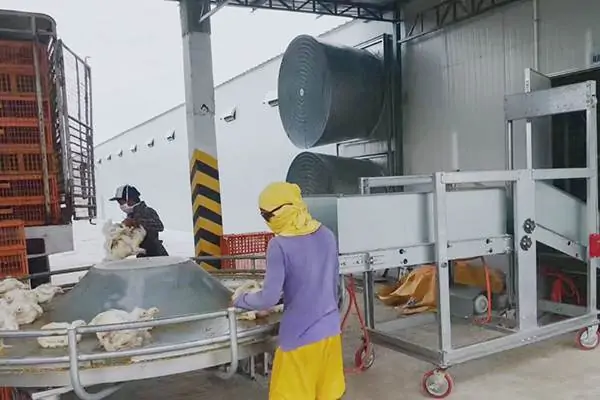

During the harvesting process, the side mesh panels automatically lift, while the bottom mesh conveyor activates to gently transfer the broilers. The birds are then guided onto a transverse conveyor at the end of the cage line, which transports them directly outside the poultry house. Workers positioned outside the house collect the broilers using a catching disc, significantly reducing in-house labor, minimizing bird stress, and lowering injury and mortality rates during harvesting.
This system is particularly suitable for large-scale, high-efficiency broiler farms seeking to optimize labor costs, improve animal welfare, and achieve consistent, mechanized harvesting operations.
Compare

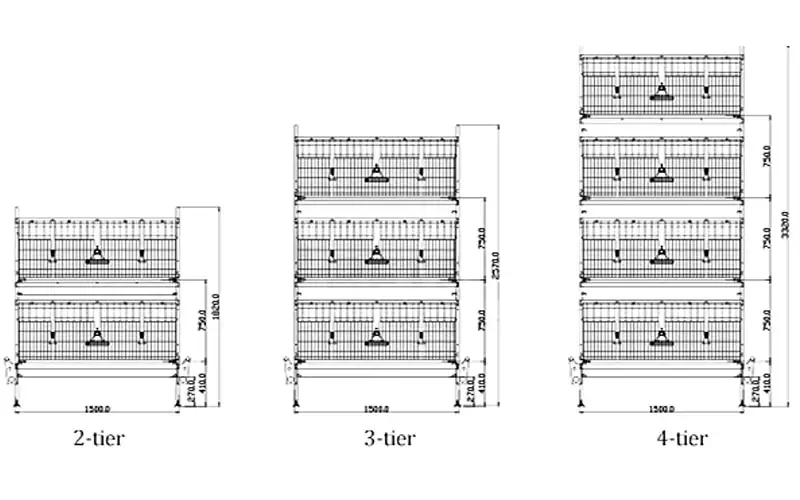

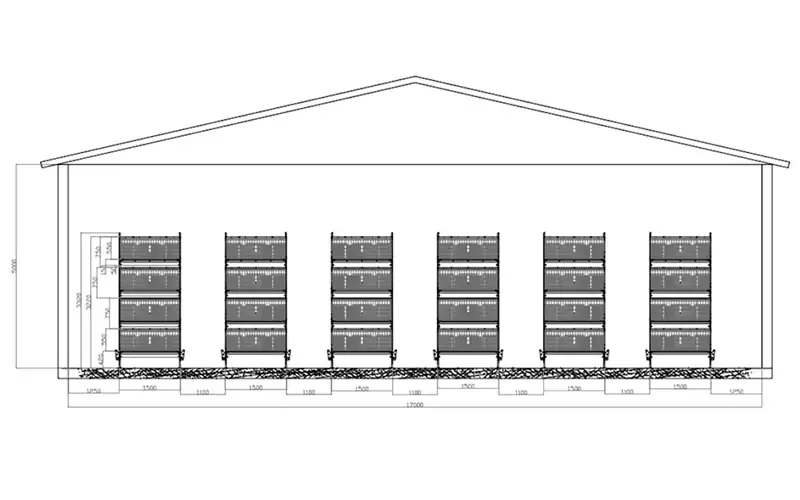

Chicken House Design Drawing
Recommended Coop Size and Number of Chickens
| Building size recommend | |||||||||
| Recommend building size | Chicken quantity | Cell length(mm) | Cell width(mm) | Cell height(mm) | raising areas(cm²) | Number of birds per layer | |||
| 91*17*5.2m (4-tier cage) | 60000 (2.5kg bird} | 3300 | 1500 | 550 | 495 | 100-125 | |||
| 98*17*5.2m (4-tier cage) | 81000 (1.8kg bird) | 3300 | 1500 | 550 | 495 | 100-125 | |||
Automatic Harvesting

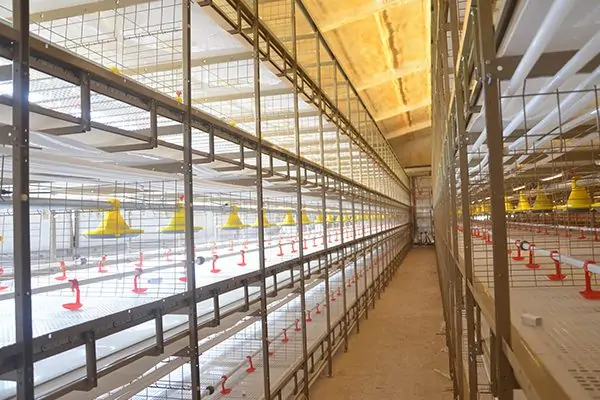

Cage and Frame
❖ Stong cage mesh: Q235 carbon wire for cage mesh, stronger tensile strength, 15-20 years lifespan ❖ Strong cage frame: 2mm thick U type cage frame, more stable to support chickens ❖ More anti-corossion: 275gsm zinc coating + painting, make the surface more anti-rust in the corrosive environment

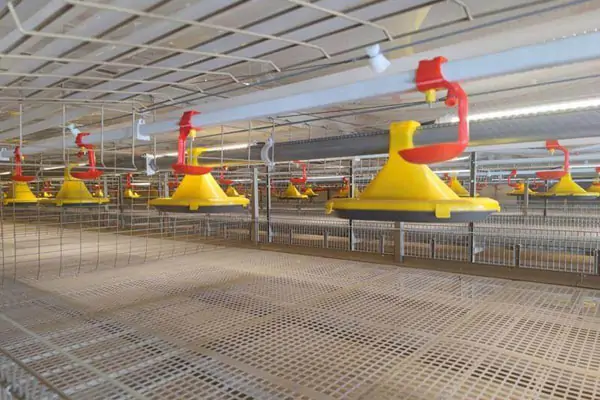

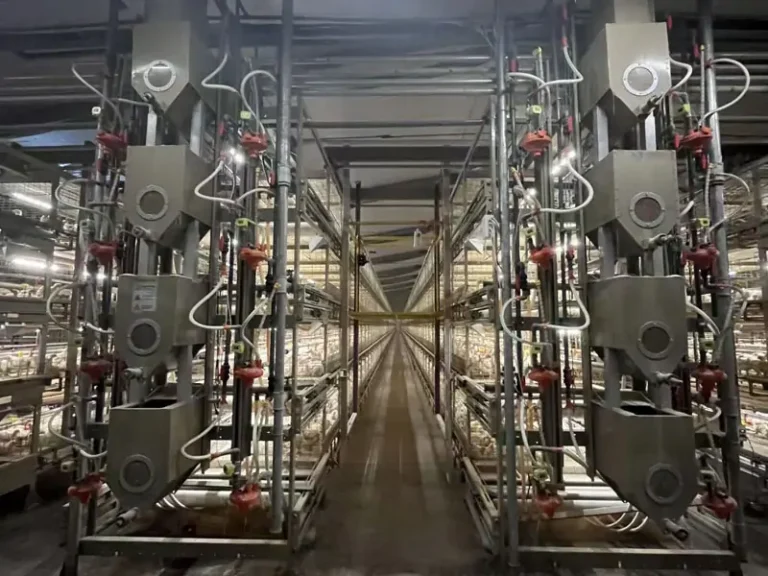

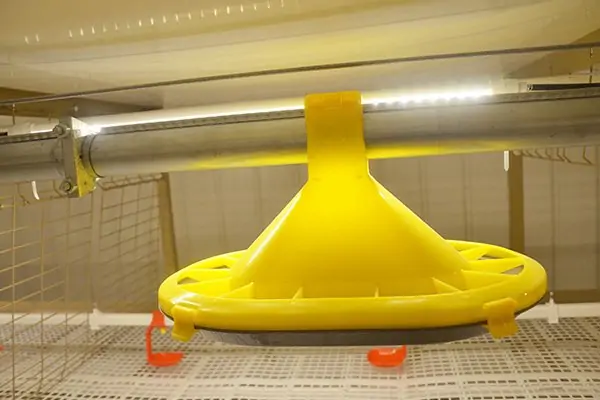

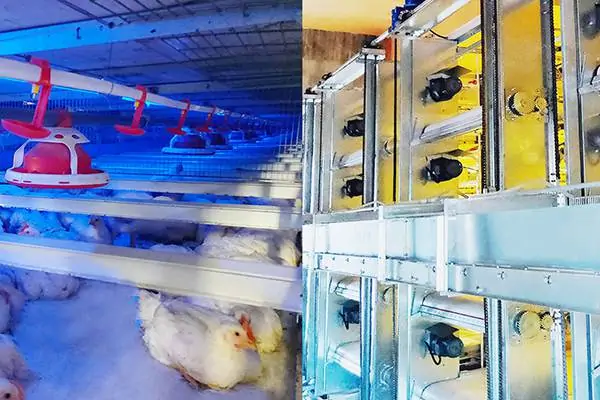

Pan Feeding System

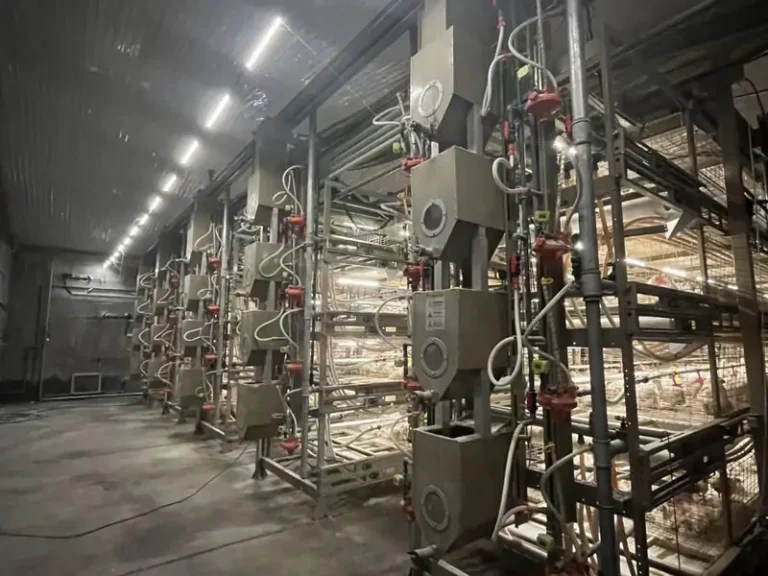

❖ Lifting system of pan feeding line allows chickens to eat at the correct height ❖ Feed sensor: IFM® ❖ Feed pipe: hot galvanized ❖ Increase harvesting space, easy to disassemble and wash.

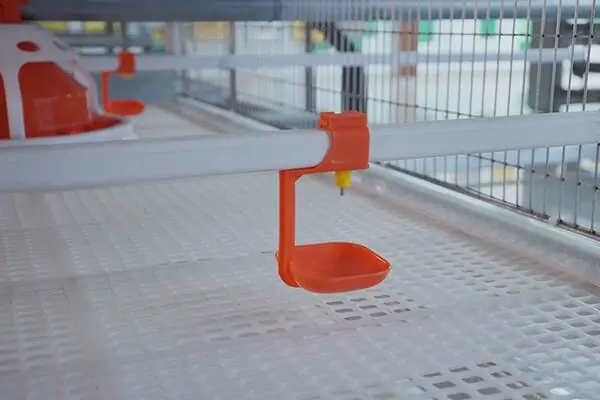

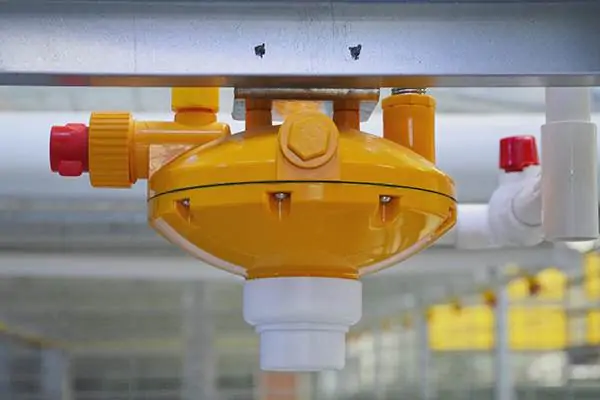

Drinking System
❖ Lifting system for every water dispenser allows chickens to drink at the correct height ❖ Two different water supply lines are placed in each cage with 8 to12 ❖ 360° water supply of the nipples ❖ Supply doser and pressure gauge

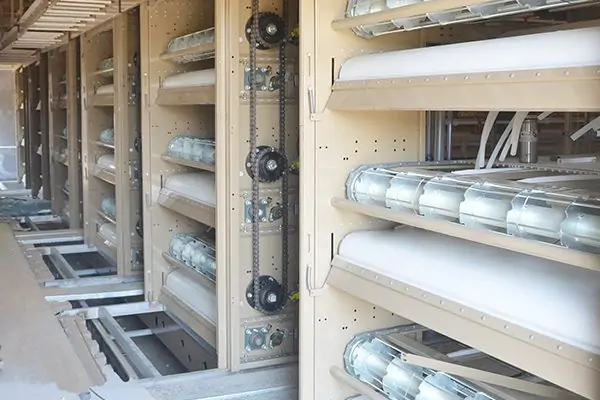

Belt Type Manure Cleaning System
❖ Daily manure removal to reduce ammonia to a minimum. ❖ PP belt, 1.2mm thickness

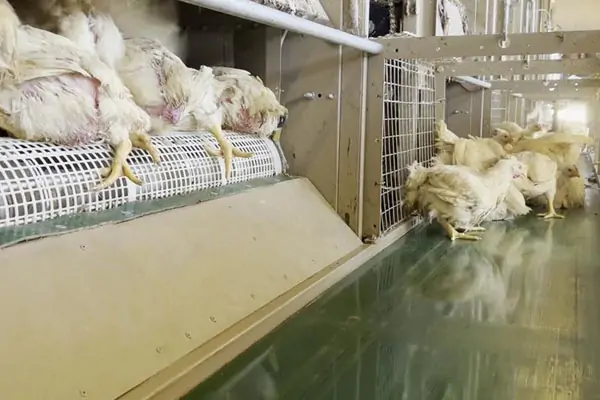

Convenient chain-type harvesting

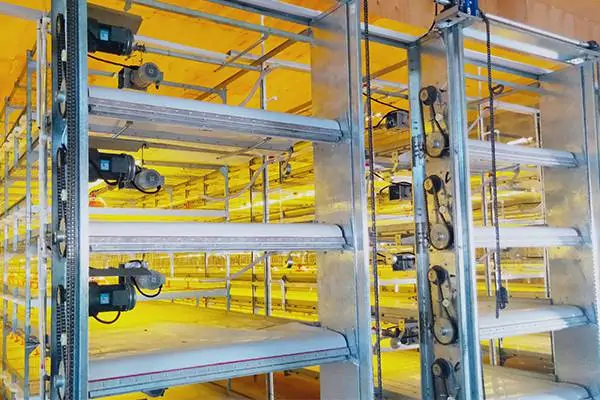

❖ The chain system is combined with the bottom slat, one-button harvesting, quickly and efficiently transport chicken from each tier to the end of the equipment.

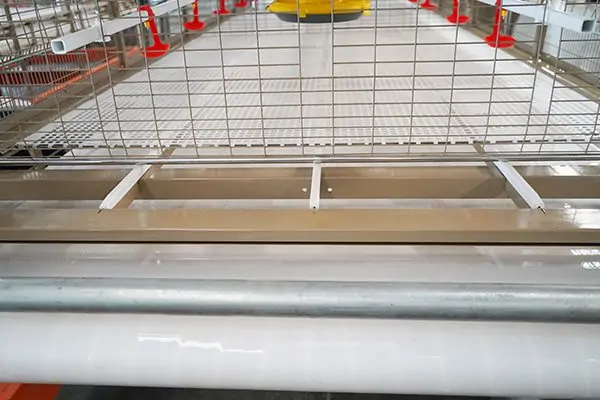

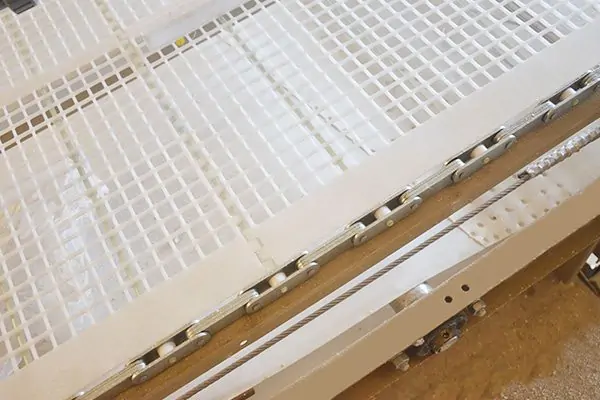

Stable chain-type bottom slat
❖ 3 reinforcement ribs are added to the chain-type bottom slat to enhance the stability of the equipment.

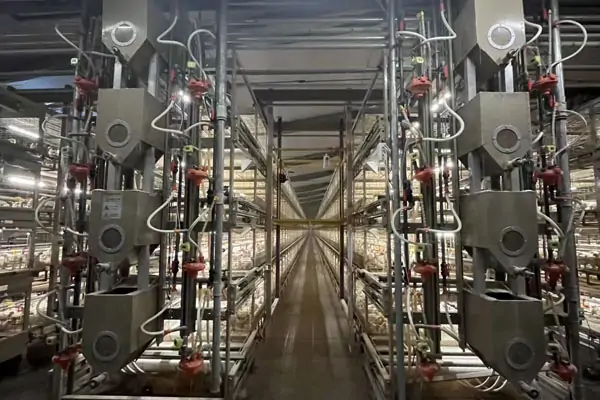

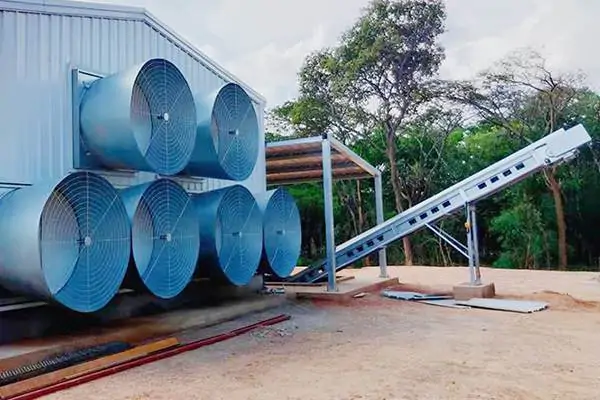

Automatic bird-harvesting system
❖ Quickly and efficiently transport chicken from each tier out of the house.

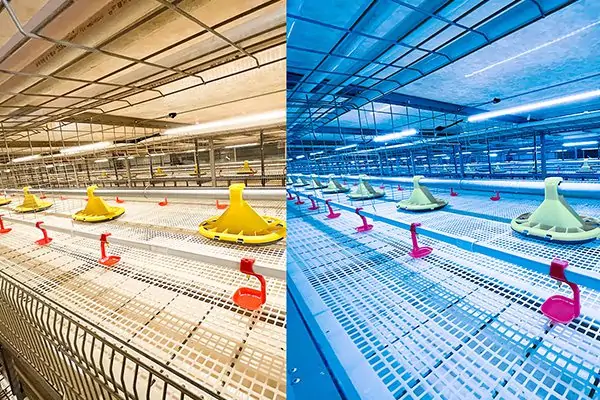

Two-color LED light strip with adjustable brightness
❖ Meeting the brightness needs of chickens at different ages.

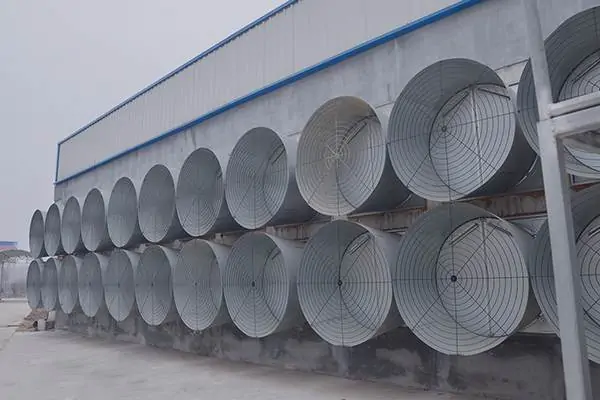

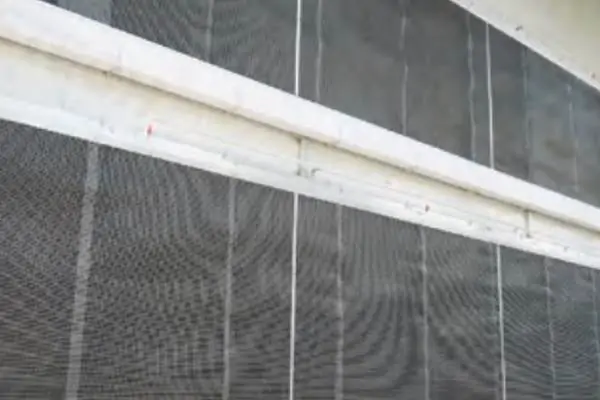

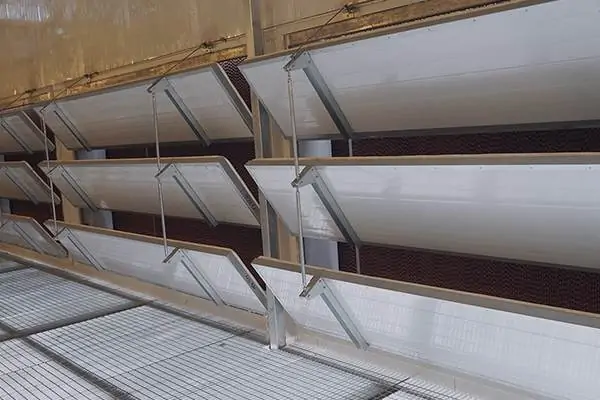

Environmental control equipment

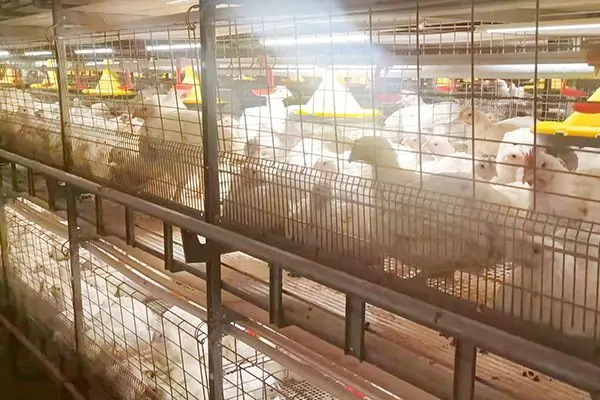

❖ 135 birds/cage (1.8kg slaughter weight): Easy to observe the health of chickens. ❖ 334cm²/bird: Make full use of raising space, better FCR.

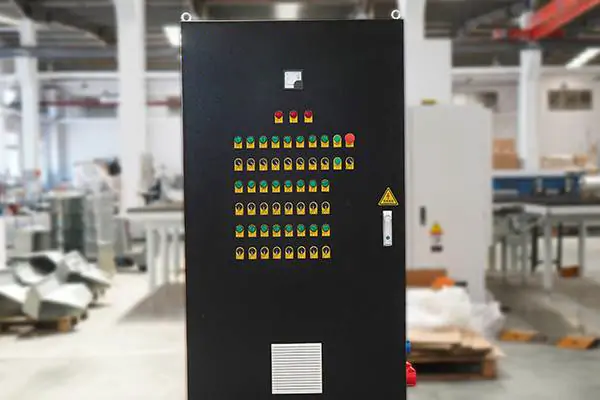

Automatic System
Why Choose Sheedoz
The durability of Sheedoz equipment is built on the use of thick, high-quality raw materials, meticulous attention to detail, and the reinforcement of critical structural components. Every part is manufactured under strict quality standards and subjected to continuous monitoring through our comprehensive quality assurance system, ensuring long-term reliability and stable performance.
Sheedoz places strong emphasis on the research and development of automation and intelligent technologies. We hold multiple structural patents, all of which have been rigorously tested and validated on modern poultry farms. This commitment to innovation enables us to deliver integrated, future-ready solutions that meet the evolving needs of our customers.
With successful projects implemented in 51 countries worldwide, Sheedoz equipment has consistently demonstrated optimal performance across a wide range of climatic and farming conditions. This global track record proves our ability to provide reliable, efficient, and adaptable poultry solutions—wherever your farm is located.
Our design experts provide customized farm layouts and poultry house designs tailored to your specific requirements, land conditions, and local climate. These detailed designs help you clearly present your project plans to partners and effectively guide workers during on-site construction.
With business operations spanning markets worldwide, Sheedoz brings extensive hands-on experience across multiple segments of the poultry equipment industry. This global expertise allows us to develop scientific, practical farm designs that optimize space utilization, productivity, and long-term operational efficiency.
In addition to equipment supply, we also offer professional training and technical guidance, ensuring that customers can operate and manage their poultry systems efficiently and confidently from installation to daily production.
Sheedoz cooperates with multiple modern breeding farms, and has accumulated valuable poultryexperiences of layer, broiler, pullet and breeder. We firmly believe that a comfortable and safe raisingenvironment is also very important. Sheedoz's solutions meets your highest requirements regarding birdhealth, production performance and environmental factors. Therefore Sheedoz not only stands for high-endquality, but also the optimal production perfommance.
Sheedoz is supported by an expert team with over 20 years of hands-on poultry farming experience. Our team includes senior consultants, experienced engineers, environmental control specialists, and poultry health protection experts, ensuring comprehensive technical support at every stage of your project.
We work closely with customers throughout the entire project lifecycle—from initial consultation and farm design to equipment production, installation, and on-site rearing guidance—helping ensure stable operation and long-term success.
Powered by advanced digital technologies, the Sheedoz “Smart Farm” cloud platform and intelligent environmental control system integrate IoT technology and cloud computing to deliver real-time monitoring, data analysis, and automated control. This enables customers to achieve fully digital, intelligent, and efficient poultry farming, driving higher productivity and smarter farm management.
