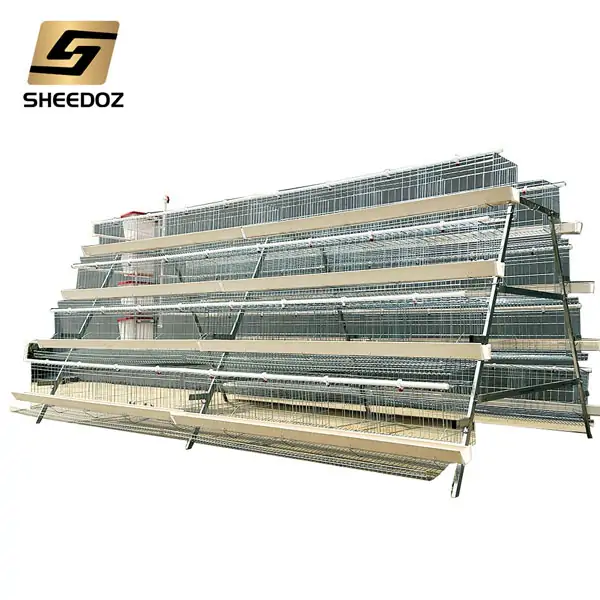

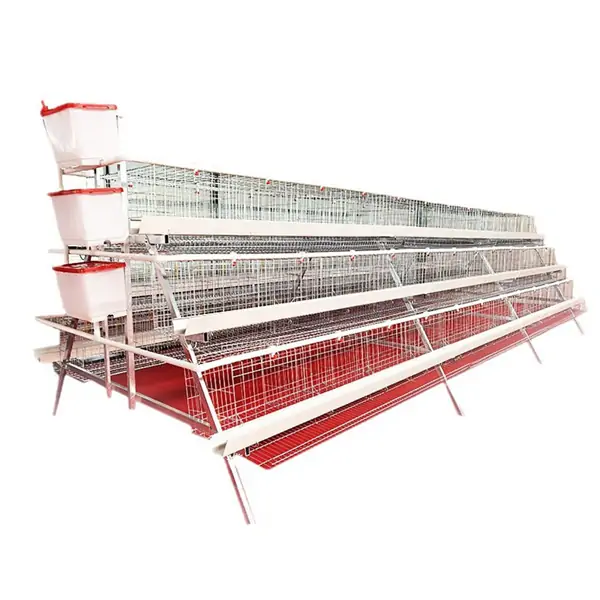

A Type Manual Layer Chicken Cage
- Product Name: A Type Manual Chicken Cage
- Applicable Industries: Poultry Farms
- Material:Hot Dip Galvanized Steel
- Tiers:3-4 Tiers
- Life Time:15-20 Years
- Competitive Advantage:We provide customers with poultry farming solutions, including product research and development, project design, production, installation and service.
Product Details
> Hot dip galvanized steel with bending technology, equipment more stable, anti-corrosion, ensure longer service life.
> Water tank with calibration or pressure regulator. It’s easier to know water consumption.
> Feeding trough with different materials. Three different materials to meet your different requirements.
> Hot Dip Galvanized Steel Cage Material of cage is hot dip galvanized steel.The zinc thickness is 275g/㎡.
Specification List of A Type Cage Systems
A-type manual layer cage system usually used for 5,000-20,000 birds chicken farms. For 5,000 layers, if 3-tier cages are installed, 28 sets of cages per row, 2 rows in one house. Totally 5,040 birds layers can be raised. For 10,000 layers, if 4-tier cages are installed, 32 sets of cages per row, 2 rows in one house. Totally 10,240 birds layers can be raised. We can provide free chicken house design according to our customers’ requirements. You just need to tell us how many chicken you are going to raise, then we can supply all details you need.

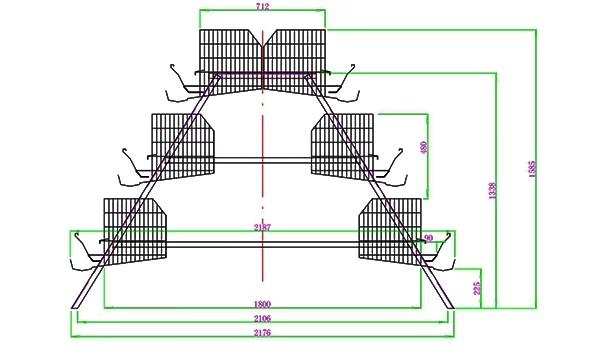

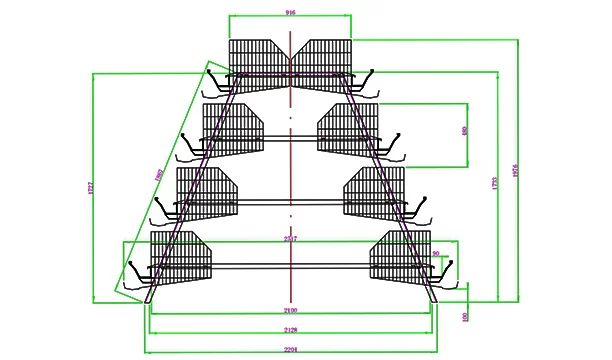

The normal size of the manual layer cage system is 1950mm*350mm*380mm and 1950mm*450mm*410mm, but support customization. Contact us now for more details!
Type | Door/Tier | Birds Qty/Door | Birds Qty/Set | Specification |
A-type | 3-tiers 4-door | 4 | 96 | 1950mm*350mm*380mm |
3-tiers 4-door | 3 | 90 | 1950mm*350mm*380mm | |
4-tiers 4-door | 4 | 128 | 1950mm*350mm*380mm | |
4-tiers 4-door | 3 | 120 | 1950mm*350mm*380mm | |
4-tiers 4-door | 4 | 160 | 1950mm*450mm*410mm |
COMPLETE RAISING SYSTEM
Automatic Chicken Waterer
❖ Each nest has a nipple drinker to ensure that the chickens can drink fresh water at any time. ❖ The Nipple drinker is well sealed, and when the chicken does not drink water, the water will not leak.
Cage Frame
❖ Reasonable staggered distance between upper and lower cage, prevent the manure from upper cage drop down on the lower chicken. ❖ Reasonable slope at the bottom mesh, reduce broken egg rate.
Automatic Manure Removal System
The automatic manure removal system transports the chicken manure to the designated location, avoids the accumulation of manure on the ground of the chicken house, reduces the pollution of the chicken house, and improves the hygiene and air quality of the chicken house.
Environmental Control System
The chicken house environment control system integrates temperature control, air humidity control, ventilation control and light control, etc., to create an excellent environment for chicken growth and egg production.
Qualification Certificate
FAQ
Can I come to China for Factory inspection?
Of course, you are welcome to visit our factory or offices in different cities anytime. Now we also support ZOOM or WeChat for online factory inspection.
Can I have a sample to check first?
Yes, we do offer raw materials samples or small trail sample order for you to check. Just tell our specialists of the details and they’ll help you about it.
Are you trading company or manufacture?
We are factory – nearly 30 years of experience for production, and morethan 25 years of exporting experience.
How long is your delivery time?
Generally it is 7 days if the goods are in stock. And 30-40 days if OEMit is according to the quantity.
How can l know my order progress?
Production and packages photos will be supplied and confirmed with you before loading.
What is the most important feature of your products?
Since we have an independent design team(10+ members), we accept all forms of customization, you just give us ideas or even just a word, and we can manufacture your ideal product for your market.
